Tractor Accessories
Front Axle Vented Dipstick
This 3‑piece Front Axle Vented Dipstick kit provides an easy and affordable way to vent your front axle and help protect your seals.
From the factory, many front axles are sealed tight. As the oil heats up and expands, pressure builds and can push past your seals – leading to leaks and expensive repairs. This low‑profile dipstick replacement gives that pressure a safe place to go.
How it works

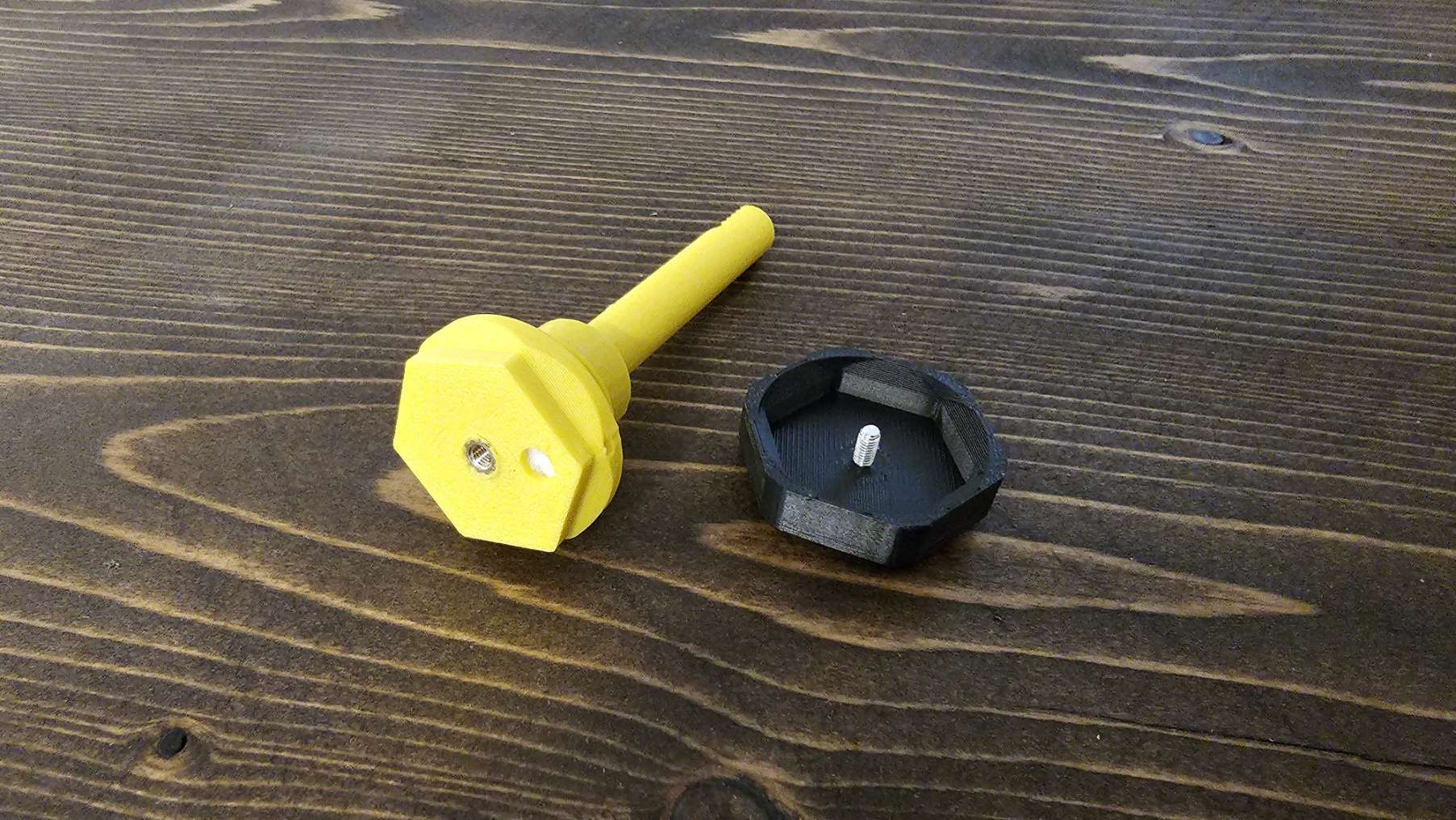

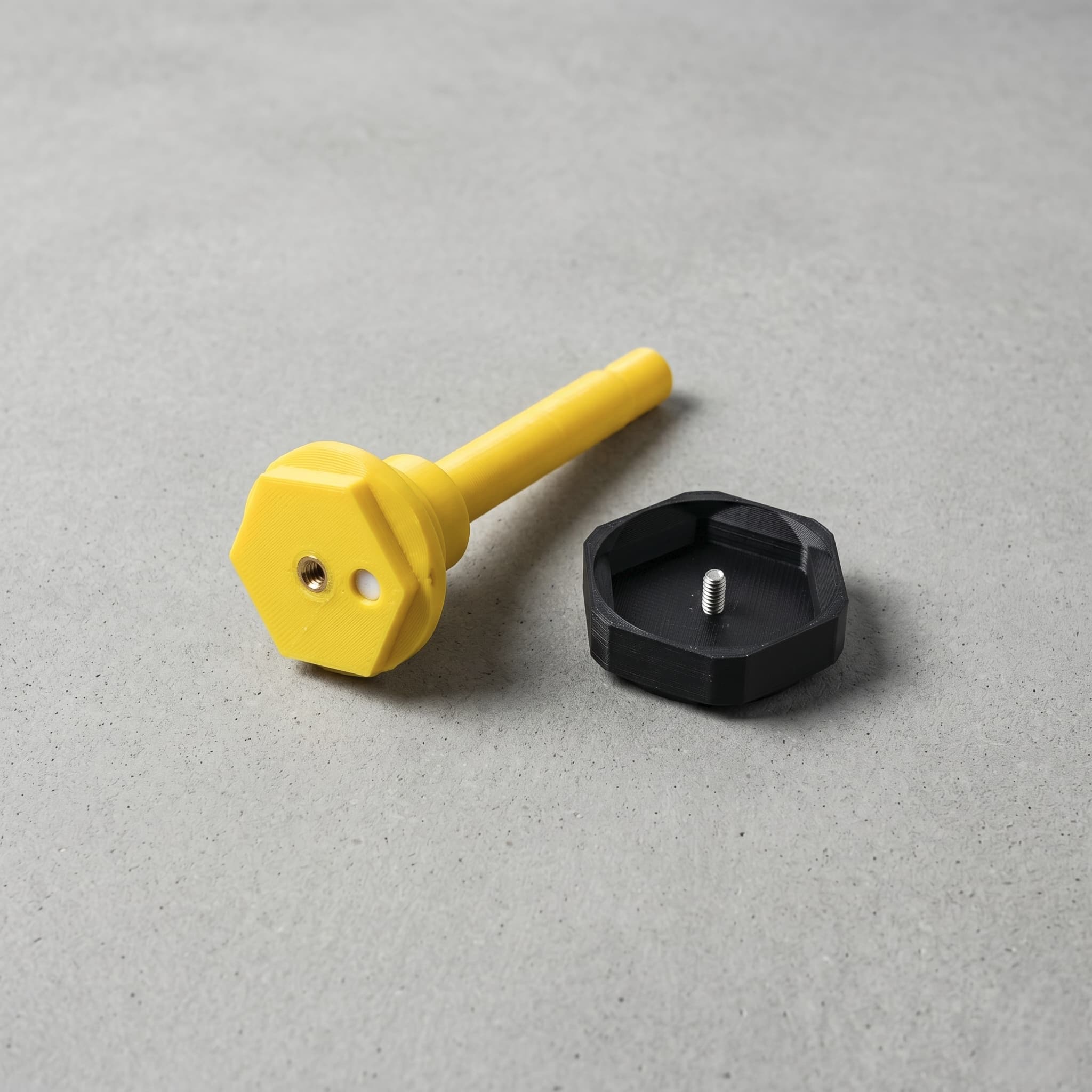

- Low‑profile dipstick body replaces your factory plug
- Internal passage runs from inside the axle, up under the black cap
- Built‑in filter helps keep dirt and debris from entering
- Vent path returns down through a small weep hole between the main body and cap
- Designed to be effective, low‑profile, and affordable for real-world use
Installation
- Remove the factory front axle dipstick.
- Thread in the pre‑assembled Front Axle Vented Dipstick.
- Hand tighten only – do not use tools.
Important notes
- Do not submerge the dipstick in liquid.
If you don’t see your tractor model listed in the options, email me at sales@rob-makes.com with your measurements – I’m happy to make a custom size.
$35.00
Made to order — ships in 1–3 business days.
Guaranteed to fit — pick your model, and if it doesn't fit, I'll make it right (replacement or refund).
Designed & Made by Rob
Ships from the USA via USPS
Need 10+ units? See wholesale pricing
Compatible Tractors
Confirmed to fit 106 models across 12 makes.
Fits 12 makes & 106 models — John Deere, Yanmar, Kioti & more▾
John Deere
Fits John Deere: 1E 23, 1M 25, 1R 25, 110 TLB, 650, 670, 750, 755, 770, 790, 850, 855, 870, 950, 955, 970, 1023E, 1025R, 1026R, 1050, 1070, 2025R (Gen1), 2025R (Gen2), 2026R, 2032R (Gen1), 2032R (Gen2), 2038R (Gen1), 2038R (Gen2), 2210, 2305, 2320, 2520, 3025E, 3032E, 3033R, 3035D, 3036E, 3038E, 3039R, 3046R, 3120, 3203, 3320, 3520, 3720, 4010, 4044M, 4044R, 4052M, 4052R, 4066R, 4066R w/ HD Front Axle, 4075R, 4100, 4105, 4110, 4115, 4120, 4200, 4210, 4300, 4310, 4320, 4400, 4410, 4500, 4510, 4520, 4600, 4700, 4710, 4720
Simplicity
Fits Simplicity: Legacy XL 27 4WD (w/540 Rear PTO), Legacy XL 33 4WD (w/540 Rear PTO) (2691524)
Bad Boy
Fits Bad Boy: 1025H
Branson
Fits Branson: 2505H
Cub Cadet
Fits Cub Cadet: SC2400
Rural King
Fits Rural King: RK24
TYM
Fits TYM: T254
Don't see your model? Send me your measurements — custom sizes are available.
Feedback
Customer Reviews
“Good idea, good quality but I have a suggestion. It is difficult to read the fluid level when the fluid in the front axle is relatively fresh. In bright sunshine I think a coloration to one side of the plastic might help provide sufficient contrast to make reading the level easier. Something to enhance the readability would be appreciated, but the venting is a really good idea and I am surprised that every tractor owner needs to use it.”
“Very good product. Fit perfectly”
“Very good”
“I have not put this on my tractor yet but have looked at this vented dipstick closely and it is very well made and designed. I feel it should work great.”
“I've bought 2of them for different tractors and glad I found them makes me feel better since I have those in”
“Awesome product. Helped my JD 4310 front axle seal leaks. All due to excessive pressure and the vent cap solved it.”
